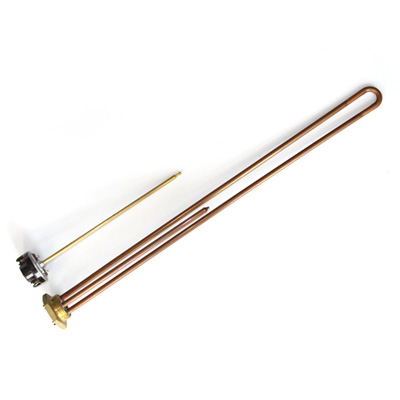

Immersion Heaters Thermostats & Water Heater Thermostat & single pole safety thermostat
Immersion Heater Thermostats / single pole safety thermostats are primarily designed for application on water filled heating and hot water systems. Our immersion thermostats have all been engineered with safety in mind. Our LANCOR immersion heater has a no-heat zone to prevent overheating and they are fitted with an RDT combined thermostat and resettable safety cut-out as standard. Water heater thermostat ensures that your surrounding will switch off when the water heats to a certain temperature, saving energy and preventing your system overheating. With various sizes from 11” to 36” lengths, our thermostat for immersion heaters cover requirements for both horizontal and vertical mounting. Our immersion thermostat heaters have three different sheath material options for different water conditions.
An extensive range of immersion heaters thermostats to suit a wide spectrum of uses and conditions. Our range of high quality immersion heaters thermostats have been designed with a resettable safety cut-out, providing further protection against boiling to steam.
Working Principle:
Our thermos-regulator belongs to inserting-pole type temperature-sensing unit, according to character of two-difference metal expansion, pulling mechanism to push the spring and to make the touch point have on-off action, it will get the control result of on and off for the electric heater water heater, electric boiler and other electric heaters
Immersion Heaters Thermostats Parameter:

Tube Material:	Stainless steel seamless pipe, welded pipe, copper, yellow brass pipe, carbon steel pipe.
Common Heater Diameter:	Φ8.5,Φ8,Φ6.5
Heater length:	30 mm-600mm * Inch-sized manufacturing available
Shapes:	straight, U, radial, etc.
Heat-resistant leads:	180 °C - 450 °C
Surface treatment:	Variety of plated nickel, passivation, black, spray.
Thermostat	With 16A 250V. L=275mm. Single safety thermostat.
