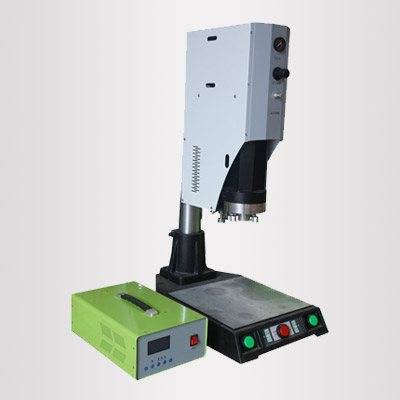

Ultrasonic welders & assembly equipment / ultrasonic welder is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. Ultrasonic welding generates heat to join parts and produces a clean weld area with uniform joint quality by welding thermoplastic materials. High-frequency vibrations are applied to two parts or layers of material by a vibrating horn tool. The fast technique is efficient, non-contaminating and requires no consumables. It’s the perfect welding technology for assembling automotive parts on a wide range of quality vehicles, crafting lifesaving medical devices and sealing modern food packaging.
Whatever your ultrasonic plastic welding challenge is, LANCOR can solve it with a customized solution for your business.
Ultrasonic Welding Machine’s Usage:
  λ. It widely apply to plastic welding, and also suitable for textile
  λ. It applied to plastic products in the aspects of riveting, cutting, sealing and welding
  λ. Suitable for welding ABS, PP, PC, PE, PS , SAN , Acrtlics, Non-Woven fabric, PVC, UPS, POM, HDPE Plastic parts.
Ultrasonic Welding Machine’s Advantage:
  λ. The strength of the joint is close to the strength material
  λ. High efficiency , high welding quality , environmental  protection and energy saving
  λ. Ultrasonic make beautiful welding surface, do not appear defect (Yellowing, edge burning )
  λ. Cleaner Weld Areas & Consistent Joint Quality
Digital Ultrasonic Welder Power Generator Feature:
  λ. Real time frequency automatic tracking display
  λ. Welding modes: time, energy, and grounding
  λ. Amplitude division function
  λ. Welding amplitude 10%-100% adjustable (1% accuracy)
  λ. Amplitude compensation
  λ. Mold impedance analysis & protection
  λ. Overload protection
  λ. Voltage protection (input)
  λ. Transducer voltage protection
  λ. 485 communication
  λ. 4 core 32 bit processor
Digital Ultrasonic Welder Power Generator specification:

Working Frequency	Rated Frequency	Frequency Range	Working Voltage
15KHz	2500w/3000w/4000w	14.40-15.20KHz	220V+-10%
20KHz	2000w/3000w	19.40-20.20KHz	220V+-10%
30KHz	1000w	29.30-30.30KHz	220V+-10%
35KHz	1000w	34.20-35.40KHz	220V+-10%
40KHz	800w	39.20-40.40KHz	220V+-10%

Ultrasonic welders & assembly equipment’s Feature
  λ.Real time frequency automatic tracking display
  λ.Welding modes: time, energy, and grounding
  λ.Amplitude division function
  λ.Welding amplitude 10%-100% adjustable (1% accuracy)
  λ.Amplitude compensation
  λ.Mold impedance analysis & protection
  λ.Overload protection
  λ.Voltage protection (input)
  λ.Transducer voltage protection
  λ.Quality management (time & energy)
  λ.Welding record (operation statistics)
  λ.Powerful, high quality , stable welding
Ultrasonic welders & assembly equipment’s

Working Frequency	Rated Frequency	Frequency Range	Working Stroke	Working Voltage
15KHz	2500w/3000w/4000w	14.40-15.20KHz	75mm/100mm	220V+-10%
20KHz	2000w / 3000w	19.40-20.20KHz	75mm	220V+-10%
30KHz	1000w	29.30-30.30KHz	75mm	220V+-10%
35KHz	1000w	34.20-35.40KHz	75mm	220V+-10%
40KHz	800w	39.20-40.40KHz	75mm	220V+-10%

Ultrasonic Mould: As the general name of ultrasonic transmitting terminals, the ultrasonic horn is used for coupling the ultrasonic generated by an ultrasonic transducer onto the workpiece to be welded.

Frequency	28KHz--15KHz
Material	Alloy steel, duralium, titanium alloy
